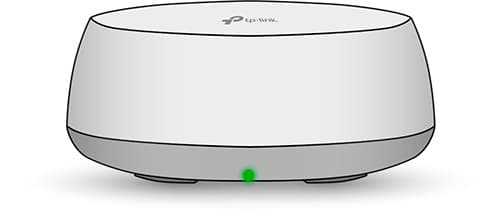

WLAN-Router (tp-link)
| LED | Device status |
|---|---|
| Flashing yellow | The device is being started up or reset. |
| Yellow | The connection quality of the device is OK. |
| Flashes blue | The device is ready for setup. |
| Flashes blue quickly | The device is currently establishing a WPS or mesh connection. |
| Blue | The device has been set up, but the Internet is not available. |
| Flashing white/green | The device is updating the firmware. |
| White/Green | The device is fully set up and connected to the Internet. |
| Flashing red | The device has lost the connection. |
| Red | There is an error. |
